| Door Preparation: |
Top & Bottom Thru Bore Dia, 25/64” (10mm) Minimum.
3-5/8” (92mm) center to center. |
| Backset: |
60mm (2-3/8”) minimum backset. Multi Point Lock
mechanism is not included. Use with SECURY Automatic
gears. Ferco® Part #: 6-35185-01-R-8B & 6-35185-02-R-8B. |
| Door Thickness: |
1-3/4” to 2” (Extension kit for 2-1/4” thick door is included.) |
| Cylinder: |
US-Cylinder 5-pin SC1 keyway
Multiple keyway available with Spartan KLC cylinders. |
| Multi Point Lock Strike Plate Kit: |
1 Middle T-shape strike plate. Round corner.
2 Top & Bottom T-shape strike plates. Round corner

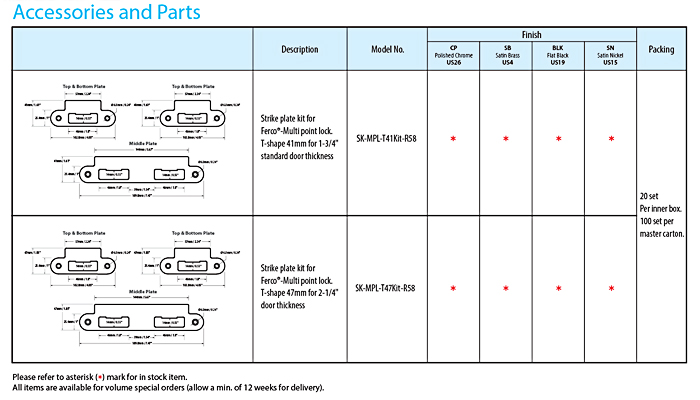

Available accessories:
SK-MPL-T41Kit-R58 for 1-3/4” (41mm) door thickness.
SK-MPL-T47Kit-R58 for 2-1/4” (47mm) door thickness. |
