Door Preperation |
Cross bore 2-1/8", Edge bore 1". 5-1/2 center to center. |
Backset: |

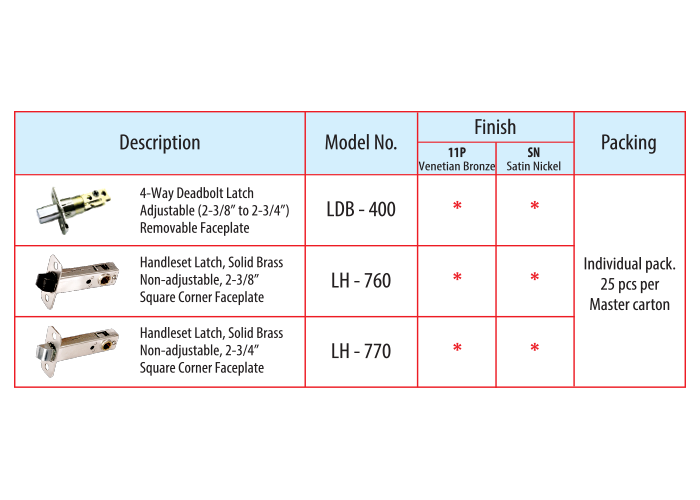

Includes one adjustable square corner deadbolt latch (2-3/8" to 2-3/4") and two non-adjustable drive-in handleset latch (2-3/8" and 2-3/4"). |
Door Thickness: |
1-3/4" to 2" (Extension kit for 2-1/4" thick door is included). |
Cylinder: |
5-pin |

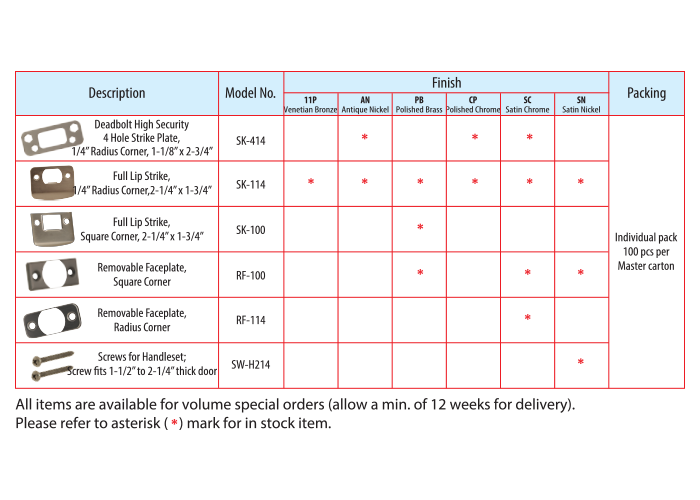

Deadbolt Latch Strike Plate: |
Standard 1-1/8" x 2-3/4" round corner. |
Deadlatch Strike Plate: |
Standard 1-3/8" x 2-1/4" full lip round corner. |
